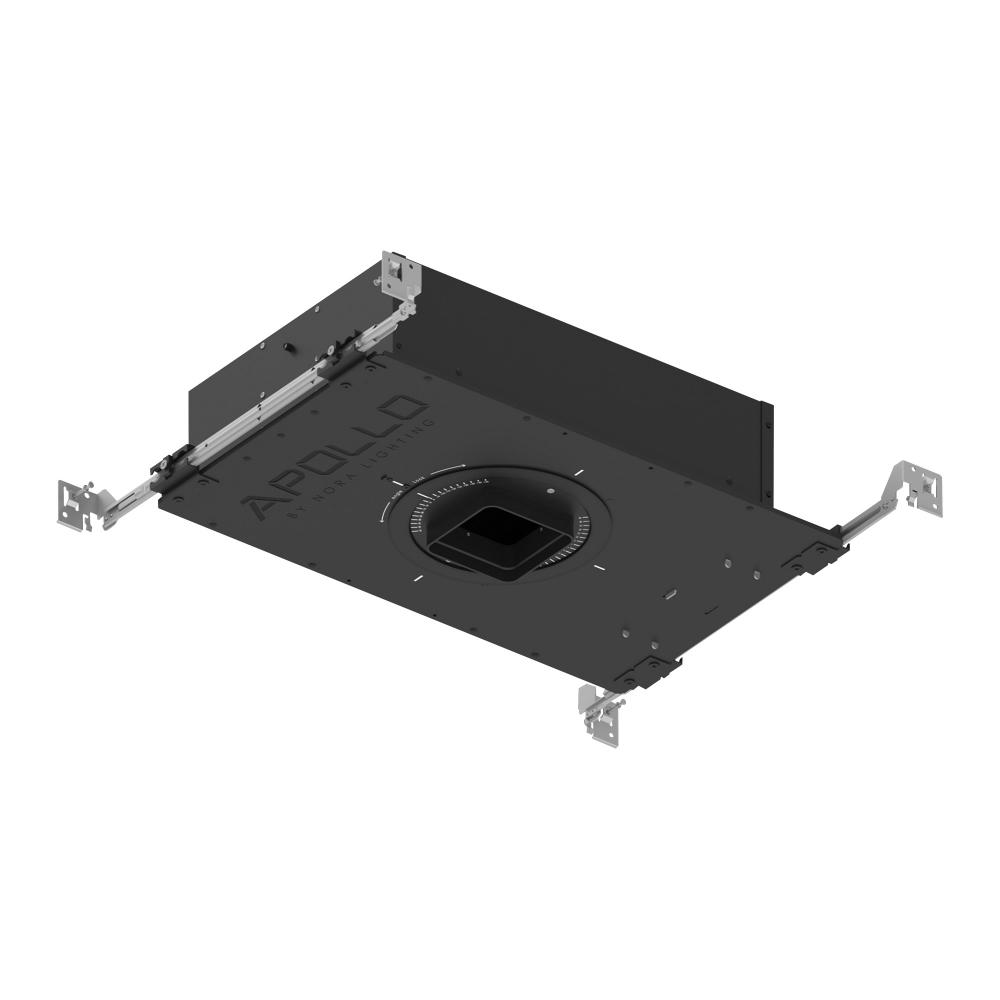

3" Apollo Square Non-IC Air-Tight New Construction Housing w/ 0.875" to 1.25" Ceiling (1U8RET)
$0.00
Call For Price
Enlarge Image
Add to Cart
Description:
Apollo Non-IC new construction housing require a minimum clearance of 3" from thermal insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Adjustable LED mechanism allows for 361° horizontal rotation and 45° vertical aiming. Optimized TIR optics directs the light through the center of the aperture for maximum efficiency and low aperture brightness.
Input Voltage: 120/277V
Lumens / Wattage: 2500lm / 26W
Color Temperature: 3500K
Color Rendering Index: 90+ CRI
Beam Spread: 38° Narrow Flood
Dimming: Triac, ELV or 0-10V
Ceiling Thickness: 0.875" to 1.25"
Compatible Trims: NAPF-3SDN, NAPF-3SPH, NAPF-3SWW, NAPT-3SDN, NAPT-3SPH, NAPT-3SWW
Listing: cULus Listed for Damp Locations (Wet locations when used with lensed trim)
Availability:
  • Manufacturer may be Out Of Stock.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 4.13"
right arrow Width: 17.13"
Additional Details:
right arrow Finish: Black
right arrow Category: Recessed
right arrow Product Line: AP01
right arrow Est. Shipping Wt.: 14
right arrow Length: 1.75
right arrow Lumens / Light Output: 2500lm
right arrow Ship Carton Height: 9
right arrow Ship Carton Length: 24
right arrow Ship Carton Width: 18
right arrow Weight: 7.5
right arrow CCT: 3500K
right arrow Contains Battery: N
right arrow Country of Origin: CHN
right arrow CRI: 90
right arrow DLC Listed: No
right arrow Master Box H: 9
right arrow Master Box L: 24
right arrow Master Box Qty: 1
right arrow Master Box W: 18
right arrow Master Box Wt.: 14
right arrow Product Family: Apollo
right arrow Safety Listing: cULus
right arrow Wattage: 26W
