Product Overview

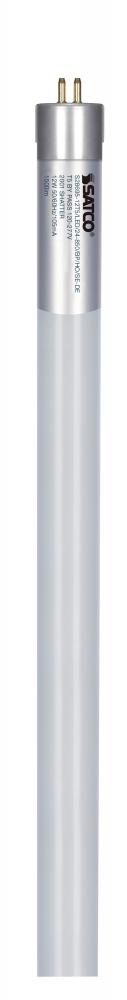

12 Watt T5 LED; Miniature bi-pin base; 5000K; 50000 Average rated hours; 1500 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

1101-1600

Kelvin:

4501-5000

Wattage:

12w

Refinement Options

Category:

LED

Sub-Category:

LED T5

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

5000K

Bulb Shape:

T5

Diameter:

0.83

EA Length:

22.5

Harmonized Codes:

8539.52.0051

Length:

22.5

Lumens:

1500L

Shap Carton Width:

0.85

Ship Carton Height:

0.85

Ship Weight:

0.2

Warranty:

5-Years

Weight:

0.21

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

240

Bulb ANSI Base:

G5

Bulb Base:

Miniature Bi Pin

Bulb Finish:

Frost

Burning Position:

Universal

Carton Cubic Feet:

0.0094

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Natural Light

Country Of Origin:

Vietnam

CRI:

80+

DLC Approved:

No

Efficacy:

125.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

Single or double ended wiring

Feature 2:

All glass tube

Feature 3:

PET-shatterproof coated

Feature 4:

NSF certified

Feature 5:

Damp location rating

Feature 6:

50/60 hertz electric power frequency

Feature 7:

50/60 hertz electric power frequency

Flourescent Equivalent:

24W

Has Camera:

No

Has Emergency Battery:

No

Housing Color:

White

Incandescent Equivalent:

50W

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

IP Rating:

IP20

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Single Ended;Double Ended

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Frost

Lens Material:

Glass

Location Rating:

Damp

Long Description:

Satco's S28695 12-watt, T5 LED bulb is an energy efficient lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this easy to install, frosted white bulb. There is no ba

Material:

Glass

Nominal Length:

24

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-25C (-13F) to +45C (+113F)

Order In Multiples Of:

25

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

Satco's 12-watt, T5 LED bulb is an energy efficient lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this easy to install, frosted white bulb. There is no ballast o

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

12T5/LED/24-850/BP/HO/SE-DE

Style:

Utility

Surge Protection:

Built-in-surge protection - 0.7KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

20%

Wattage Selectable:

No

Watts:

12W
